Maytag Washer Error Code F7 E1: Meaning and Fix
Also shown as: F7E1, F7-E1
Reading the washer display
On a washer the code appears on the digital display or as a pattern of flashing cycle lights. Note it exactly, including any dashes or sub-codes, then unplug the washer for five minutes and run a short drain cycle to see whether it returns. Maytag shares the Whirlpool pairing: read the first group, then the sub-code that follows it.
Maytag appliances are built by Whirlpool Corporation on shared platforms, which is why Maytag codes often match Whirlpool ones. Maytag washers, dryers and ranges commonly show F-codes with an E sub-code, or flashing keypad lights. The codes apply to model numbers such as MDB7600AWB, MDB7600AWW and PYE2300AYW; check the label on your unit to confirm yours.
What causes F7 E1
- Motor wiring or the harness plug is loose
- Speed or tachometer feedback is missing, so the control shuts the motor down
- Drive belt, coupling or transmission is worn or slipping
- Motor control board is failing
- Motor is overloaded by an oversized or unbalanced load
How to fix it
- Cycle the power: unplug the washer (or switch off its breaker) for five minutes, restore power, then start a short cycle and see whether the code returns.
- Check the load size and redistribute it so the drum can turn freely; stop and start the cycle again.
- With power off, spin the drum or agitator by hand to feel for binding, a loose belt or a coupling that slips.
- Inspect the motor harness and plugs at both the motor and control board for heat marks or loose pins.

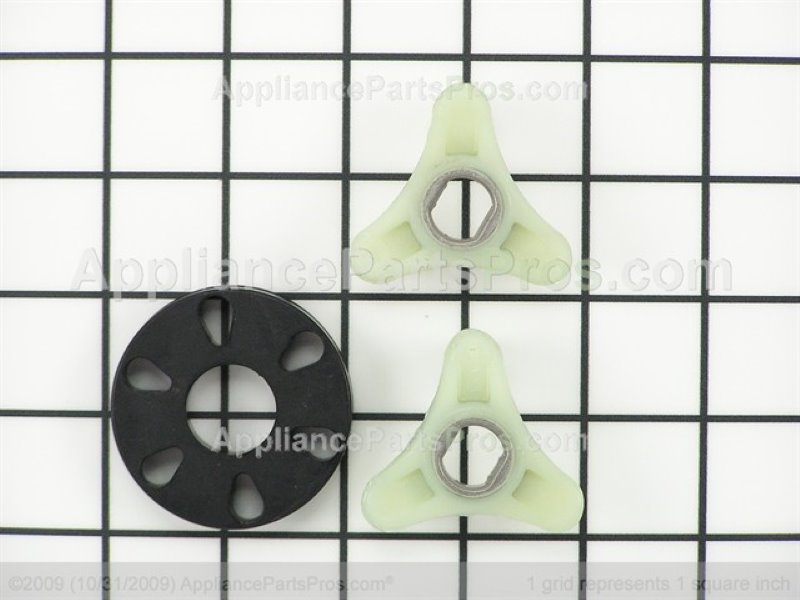

- If the drum turns freely but the motor will not start or runs erratically, replace the motor or the coupling set per the diagnosis.
- Run a full short cycle or function again and confirm the code stays gone before putting the appliance back into normal use.
Parts you may need
Questions
What does F7 E1 mean on a Maytag washer?
It is a fault code from the Maytag control. It indicates a problem with the drive system. A power reset is the first thing to try.
Can I keep using the washer while it shows F7 E1?
You can try it after a power reset. If the code returns, the affected function may not run properly, so it is worth fixing soon before it causes a bigger failure.
Do I need a technician to clear F7 E1?
Often yes. Part of this repair means testing live circuits or replacing a control board, so a technician is the safer choice unless you are comfortable with electrical diagnosis.
Other Maytag washer codes
Sources
Part numbers are OEM references; confirm fit by your model number before ordering. Meanings compiled from manufacturer and parts-retailer documentation; see sources below. Unplug the appliance before opening it.
Applies to models including MAH4000AWW, PAV2300AWW, MAH5500BWW, MAH3000AWW, FAV6800AWW, MAH8700AWW, MAV6200AWW, PAVT234AWW.
