Kenmore Dishwasher Error Code F4E1: Meaning and Fix
Also shown as: F4-E1
Reading the dishwasher display
A dishwasher reports its fault in the display window, or by blinking a cycle light a set number of times with a pause between groups. Count the blinks and pauses before opening the door. Check the model-number prefix first: the same Kenmore code can mean different things depending on the manufacturer.
Kenmore is a private label, and the factory that built your unit decides which fault codes it shows. The first digits of a Kenmore model number (110, 417, 665, 795, 796 and so on) tell you whether Whirlpool, LG, Electrolux or Frigidaire made it. Check the model label on your unit before using any chart.
What causes F4E1
- Low household water pressure or a half-closed shutoff valve
- A failing inlet valve solenoid that opens slowly, sticks open or does not open at all
- Float assembly stuck
- A clogged mesh screen on the inlet valve or a kinked fill hose
How to fix it
- Cancel the cycle and make sure the hot and cold supply valves behind the machine are fully open.
- Turn off the water, disconnect the fill hose and rinse the small filter screen at the valve inlet to clear sediment.
- Free the float by cleaning the housing.
- Inspect the hose for kinks and test another faucet in the home to confirm pressure is normal.
- Reconnect, restore power and start a short cycle while listening for the valve clicking and water running in.
- If water still fails to arrive (or never stops), measure the valve coil with a multimeter and replace the inlet valve if it is out of range.
Parts you may need
| Part | Part no. | Buy |
|---|---|---|

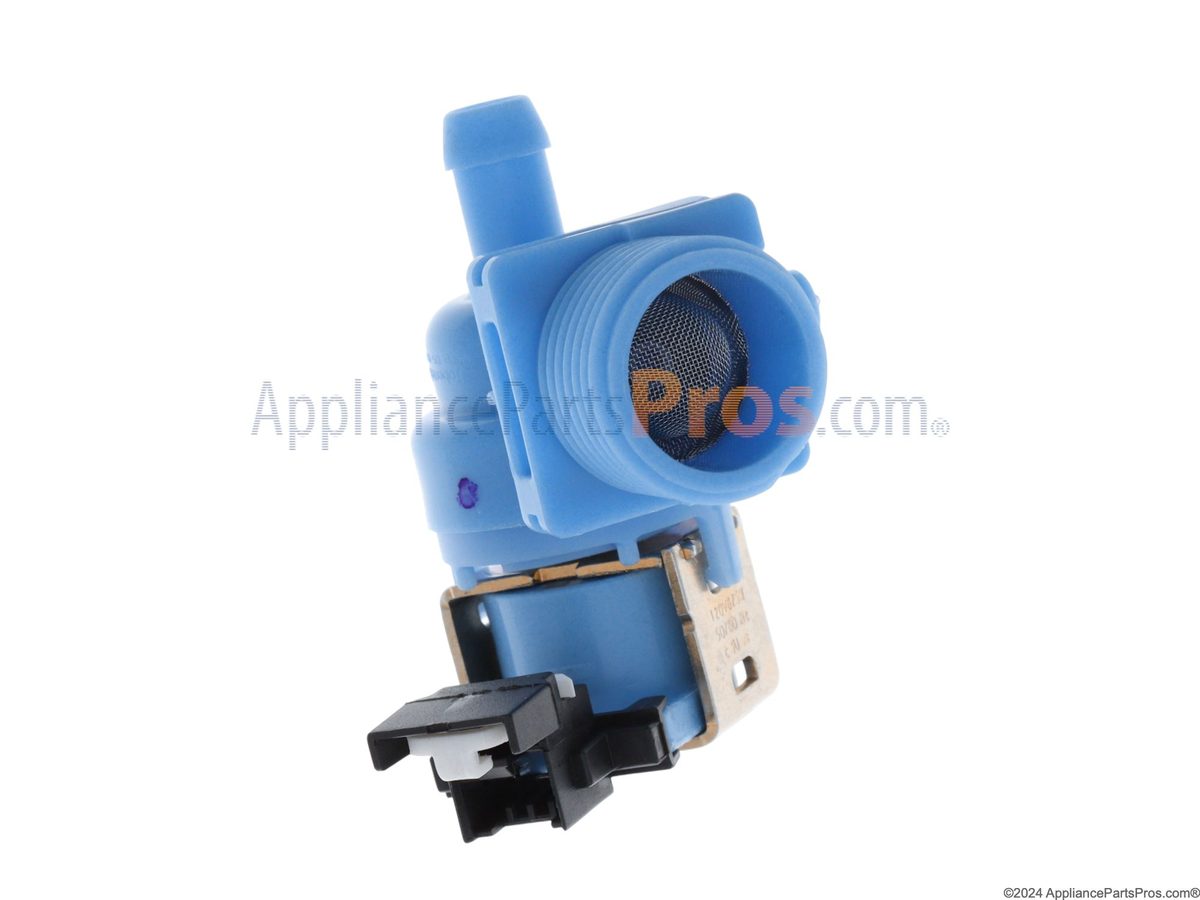

| Dishwasher Water Inlet Valve | W11175771 | Find part |
Part numbers are OEM references; confirm fit by your model number before ordering. Some links are affiliate links; we may earn a commission at no extra cost to you.
Questions
What does error F4E1 mean on a Kenmore dishwasher?
The tub failed to reach the right water level within the fill window. Kenmore sells units built by several manufacturers, so the code table that applies depends on who made your model; use the model number to confirm.
Can I keep using my dishwasher while F4E1 is showing?
Only briefly. A machine that cannot fill correctly will wash poorly and, if the valve sticks open, can overflow, so shut the water off at the wall when it is idle.
How do I clear F4E1, and can I fix it myself?
Cancel the program, switch the appliance off and leave it unplugged (or the breaker off) for about five minutes, then restart. The code only stays cleared if the underlying problem is fixed, so work through the steps above. This one is usually a do-it-yourself job with basic tools.
Other Kenmore dishwasher codes
Sources
Part numbers are OEM references; confirm fit by your model number before ordering. Meanings compiled from manufacturer and parts-retailer documentation; see sources below. Unplug the appliance before opening it.
Applies to models including Kenmore Elite 665 series (Bosch/Whirlpool/Electrolux-built), Kenmore 665.1 series (Whirlpool-built), Kenmore 630 / 665.13 series (Electrolux-built).
