Kenmore Washer Error Code F7E1: Meaning and Fix
Also shown as: F7-E1
Reading the washer display
On a washer the code appears on the digital display or as a pattern of flashing cycle lights. Note it exactly, including any dashes or sub-codes, then unplug the washer for five minutes and run a short drain cycle to see whether it returns. Check the model-number prefix first: the same Kenmore code can mean different things depending on the manufacturer.
Kenmore is a private label, and the factory that built your unit decides which fault codes it shows. The first digits of a Kenmore model number (110, 417, 665, 795, 796 and so on) tell you whether Whirlpool, LG, Electrolux or Frigidaire made it. Check the model label on your unit before using any chart.
What causes F7E1
- A worn motor, brushes or bearings that stall under load
- A loose or damaged wire harness between the motor and the control board
- Worn bearings or belt
- A failed motor control module, triac or tachometer/Hall sensor feedback
How to fix it
- Power the machine down and unplug it, then clear the drum, spray arm or impeller by hand to make sure nothing is binding.
- Check that the load is not oversized or unbalanced and that the drive belt or coupling, if fitted, is intact.
- Spin drum by hand while unplugged.
- Inspect the motor harness and connectors for damage and reseat them firmly.
- Measure the motor windings and tachometer sensor against your service data; look for open or shorted readings.
- Replace the motor or its control board depending on which part fails the test, then run a test cycle.
Parts you may need
| Part | Part no. | Buy |
|---|---|---|

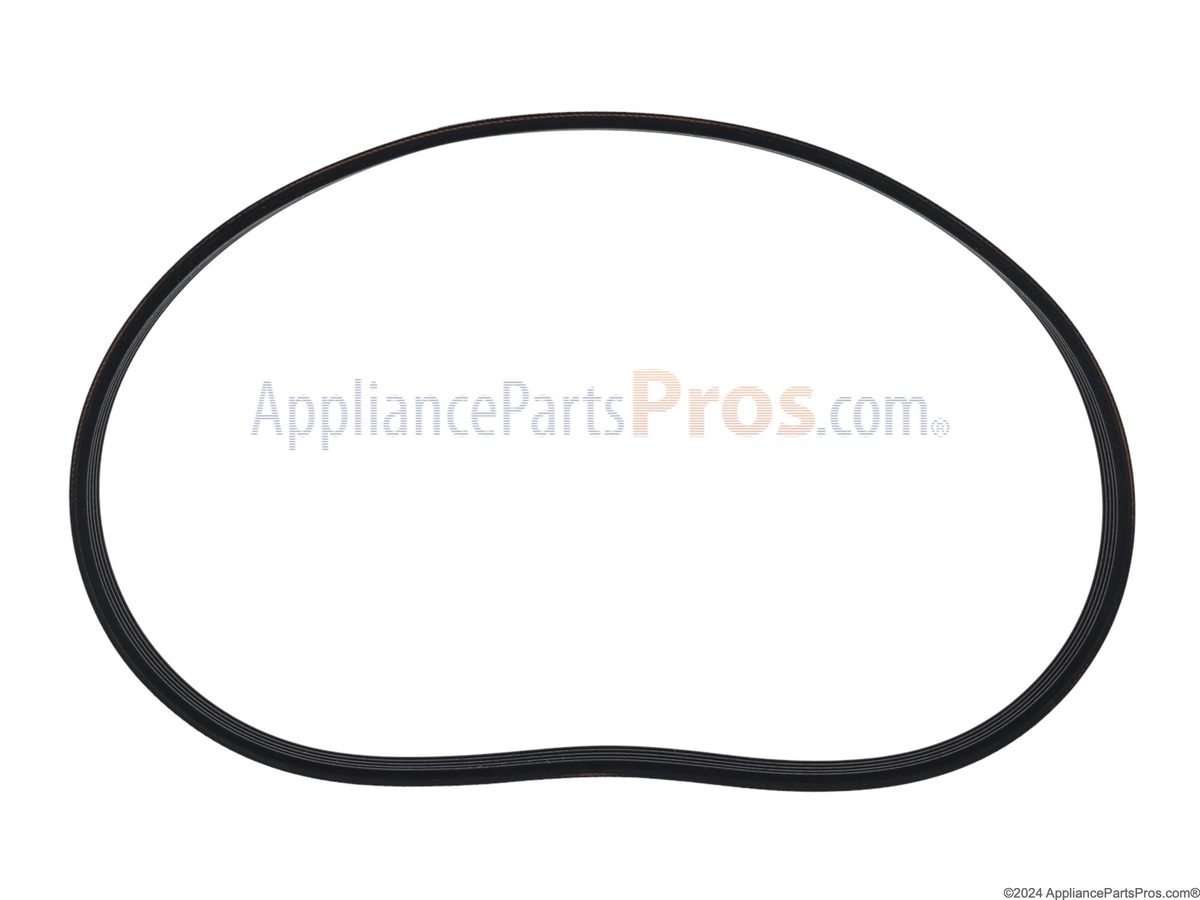

| Washer Drive Belt | WPW10006384 | Find part |
Part numbers are OEM references; confirm fit by your model number before ordering. Some links are affiliate links; we may earn a commission at no extra cost to you.
Questions
What does error F7E1 mean on a Kenmore washer?
The drive system could not reach the commanded speed. Kenmore sells units built by several manufacturers, so the code table that applies depends on who made your model; use the model number to confirm.
Can I keep using my washer while F7E1 is showing?
No. Repeated attempts to start a stalled motor can overheat it or damage the control board.
How do I clear F7E1, and can I fix it myself?
Cancel the program, switch the appliance off and leave it unplugged (or the breaker off) for about five minutes, then restart. The code only stays cleared if the underlying problem is fixed, so work through the steps above. Parts here involve electronics, heating or sealed components, so consider a qualified technician if the basic checks do not clear it.
Other Kenmore washer codes
Sources
Part numbers are OEM references; confirm fit by your model number before ordering. Meanings compiled from manufacturer and parts-retailer documentation; see sources below. Unplug the appliance before opening it.
Applies to models including Kenmore Elite HE3 / HE4 (LG-built 796.4 series), Kenmore 110 series (Whirlpool-built), Kenmore Elite 417 series (Electrolux/Frigidaire-built).
