Overhead Door opener codes

A garage door opener reports faults through blinking LEDs on the motor head, a diagnostic window on the logic board, or the wall control. Count the flashes slowly and repeat the count before you decide what you saw. Overhead Door uses red and green LEDs; note which color is flashing and how many times.

Models covered: Legacy 850, Legacy 920, Odyssey 1000, 1026, 2029.

Overhead Door opener code Red LED continuous: remote (Genie-built opener part image shown as a generic reference)

All 8 codes

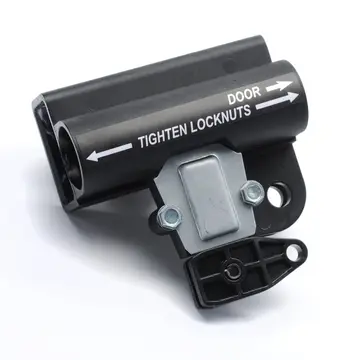

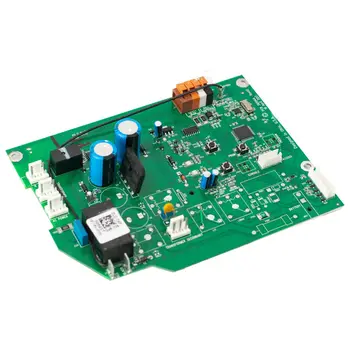

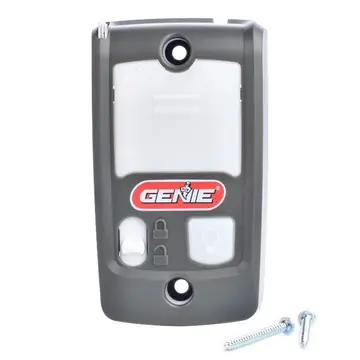

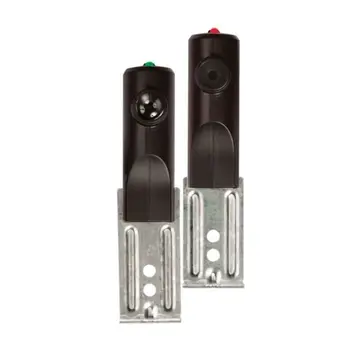

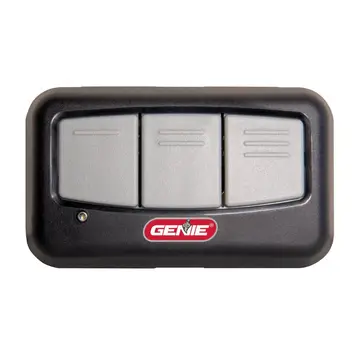

Overhead Door opener code Red LED continuous: remote (Genie-built opener part image shown as a generic reference)Red LED continuousProgramming incomplete (DIY)Overhead Door opener code Red LED 1 blink: remote (Genie-built opener part image shown as a generic reference)Red LED 1 blinkTransmitter has not learned (DIY)Overhead Door opener code Green LED 1 blink: Safe-T-Beam sensor (Genie-built opener part image shown as a generic reference)Green LED 1 blinkLimits incomplete or door obstruction (DIY)Overhead Door opener code Green LED 2 blinks: Safe-T-Beam sensor (Genie-built opener part image shown as a generic reference)Green LED 2 blinksUp limit, wiring or sensor alignment (DIY)Overhead Door opener code Green LED 3 blinks: control board (Genie-built opener part image shown as a generic reference)Green LED 3 blinksLimits set backwards (DIY)Overhead Door opener code Green LED 4 blinks: wall console (Genie-built opener part image shown as a generic reference)Green LED 4 blinksWall button wire short or reversed (DIY)Overhead Door opener code Green LED 5 blinks: carriage assembly (Genie-built opener part image shown as a generic reference)Green LED 5 blinksChain/belt too tight or control failure (pro repair)Overhead Door opener Safe-T-Beam sensorSafe-T-Beam red LED flashingSafe-T-Beam sensor LED flashing red (DIY)

About Overhead Door codes

Overhead Door openers (Legacy and Odyssey lines) report problems through red and green LED patterns on the powerhead. Count the blinks of the color that is lit and match them to the table. The codes apply to model numbers such as Legacy 850 and Legacy 920; check the label on your unit to confirm yours.
