Speed Queen Washer Error Code EL: Meaning and Fix
Reading the washer display
On a washer the code appears on the digital display or as a pattern of flashing cycle lights. Note it exactly, including any dashes or sub-codes, then unplug the washer for five minutes and run a short drain cycle to see whether it returns. Speed Queen shows two characters such as Ed or E1 on the control.
Speed Queen, from Alliance Laundry Systems, builds commercial-grade home laundry. Its washers and dryers use short error codes such as E1 or Ed, and the control is simpler than most consumer brands, which makes diagnosis more direct. The codes apply to model numbers such as DR7, DC5 and TR7; check the label on your unit to confirm yours.
What causes EL
- Low or unstable household voltage, or a loose outlet/plug
- Shared circuit with other appliances
- A failing power-supply section on the control board
- A tripped GFCI or a shared circuit overloaded by other appliances
How to fix it
- Plug the appliance directly into a wall outlet (no extension cord or surge strip) and check the breaker.
- Measure the outlet voltage; it should sit within roughly 10 percent of the nominal value on the data plate.
- Plug into a dedicated outlet.
- Check for scorched plug blades or a loose plug and replace damaged parts.
- Cut power for several minutes, restore it and run a short cycle.
- If the code returns on a healthy supply, have the control board power section tested or replaced.
Parts you may need
| Part | Part no. | Buy |
|---|---|---|

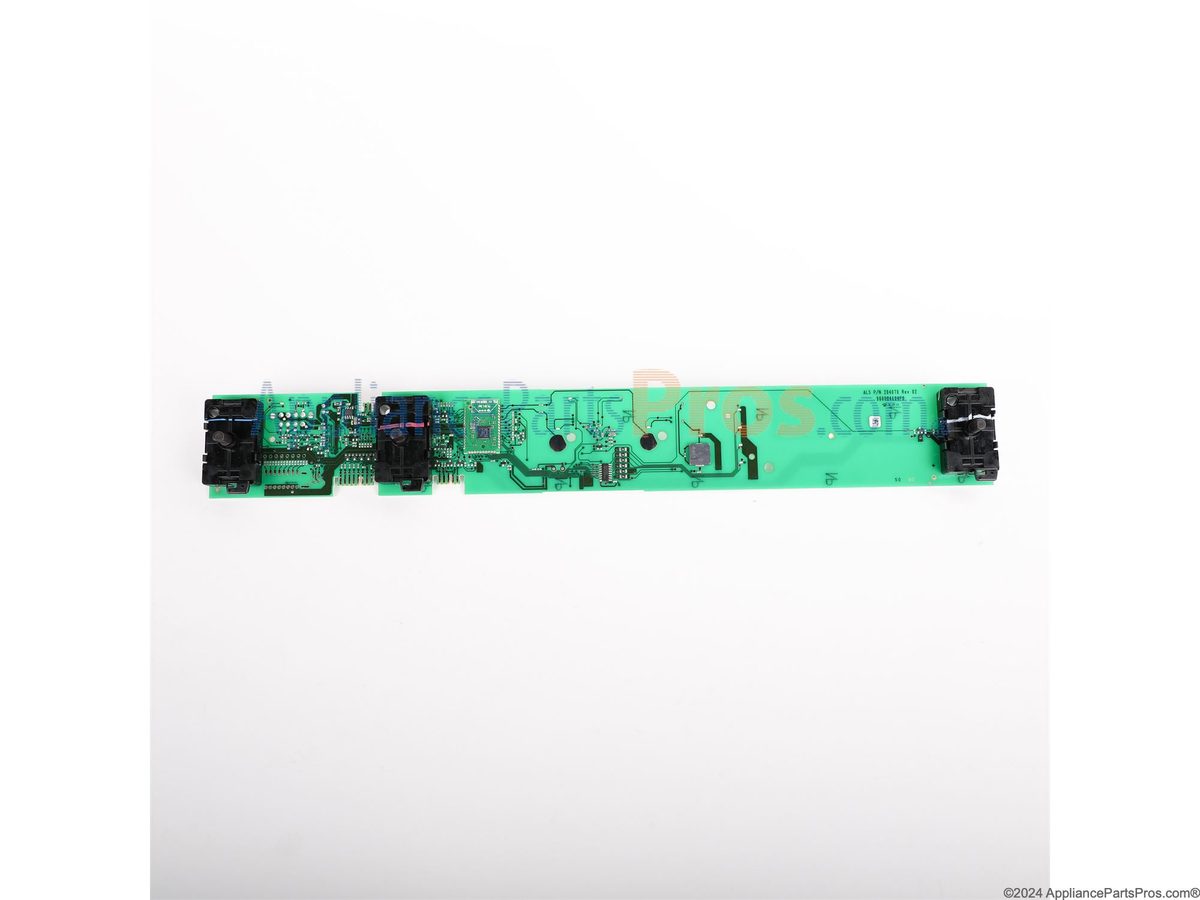

| Washer Control Board Assembly | 205076P | Find part |
Part numbers are OEM references; confirm fit by your model number before ordering. Some links are affiliate links; we may earn a commission at no extra cost to you.
Questions
What does error EL mean on a Speed Queen washer?
The washer sees a supply voltage lower than it needs. Exact behavior can vary by model and software version; confirm against your own manual.
Can I keep using my washer while EL is showing?
Better not to. Running on bad voltage can damage motors and electronics.
How do I clear EL, and can I fix it myself?
Cancel the program, switch the appliance off and leave it unplugged (or the breaker off) for about five minutes, then restart. The code only stays cleared if the underlying problem is fixed, so work through the steps above. Parts here involve electronics, heating or sealed components, so consider a qualified technician if the basic checks do not clear it.
Other Speed Queen washer codes
Sources
Part numbers are OEM references; confirm fit by your model number before ordering. Meanings compiled from manufacturer and parts-retailer documentation; see sources below. Unplug the appliance before opening it.
Applies to models including TR7, TC5, FF7, LWNA52, AWNE92.
