LiftMaster error codes

LiftMaster, from the Chamberlain Group, is the professional-installer line. Its openers with a yellow Learn button report faults as LED flash counts or two-digit diagnostic codes such as 1-1 or 4-5 on the logic board. The codes apply to model numbers such as 8500W and 87504-267; check the label on your unit to confirm yours.

31 codes across 1 appliance type.

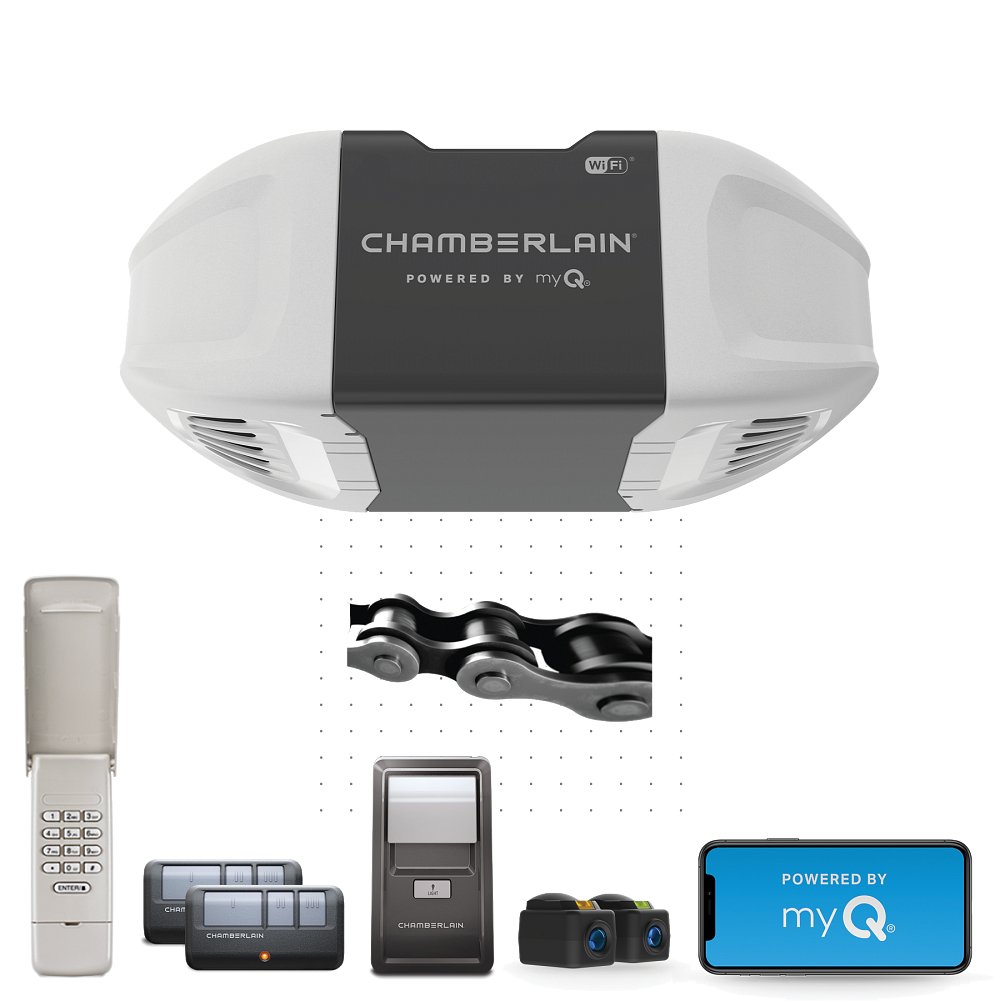

LiftMaster opener code Yellow Learn LED rapid flash: opener

Pick your appliance

Opener31 codes

LiftMaster opener codes

Yellow Learn LED rapid flashStuck button on a remote or keypad 1-1Safety sensor wire open or sensors not connected 1-2Safety sensor wire shorted or reversed 1-3Door control wire shorted 1-4Safety sensors misaligned or beam blocked 1-5Travel module or RPM sensor fault 1-6Door coasting after stopping 2-1Logic board fault 2-1 2-2Logic board fault 2-2 2-3Logic board fault 2-3 2-4Logic board fault 2-4 2-5Logic board fault 2-5 3-2Travel limits lost after power return 3-3Battery charging circuit error 3-5Door stops open or reverses to closed limit 4-1Force or travel fault, door reverses before floor 4-3Door stops and reverses just before the floor 4-4Door stops before reaching full open 4-5Travel module connection or door movement fault 4-6Safety sensors blocked or misaligned 1 flashSafety sensor wire broken or disconnected 2 flashesSafety sensor wire shorted or reversed 3 flashesDoor control (wall button) fault 4 flashesSensor beam misaligned (sender steady, receiver dim)5 flashesNo RPM pulses detected in the first second 6 flashesMotor circuit failure MAS 2 blinksClutch slipping MAS 4 blinksRPM sensor error MAS 8 blinksBrown-out LMEP steady flashPhoto eye wire disconnected or damaged MAS 5 blinksOperator wiring problem
