Electrolux error codes

Electrolux builds the platforms behind both its own line and Frigidaire, so its codes line up closely with Frigidaire ones. Look for E codes on laundry, F codes on ranges and i codes on dishwashers. The codes apply to model numbers such as EIDW5905JS, EDSH4944AS and EFME527UIW; check the label on your unit to confirm yours.

34 codes across 5 appliance types.

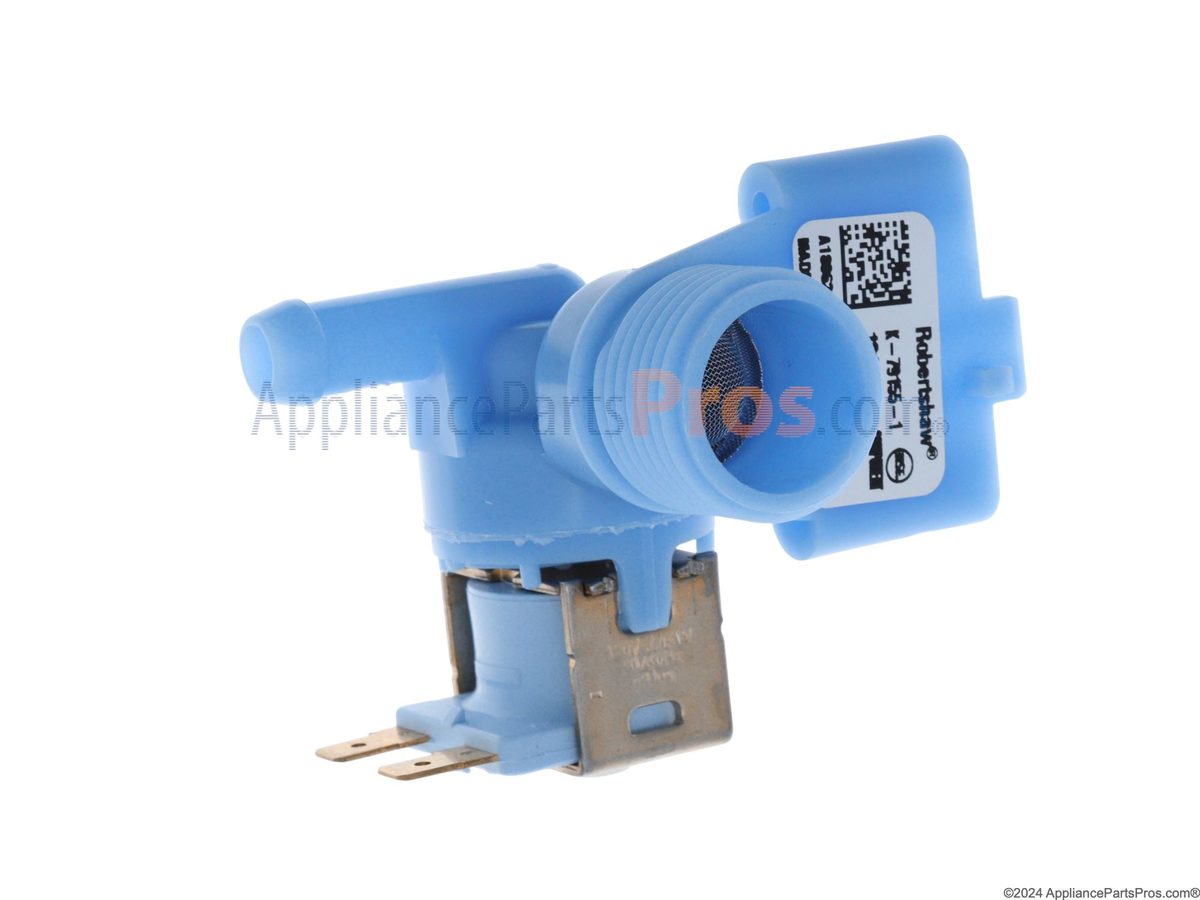

Electrolux dishwasher i10: example water inlet valve (part 5304525044), representative part photo for this code

Pick your appliance

Electrolux dishwasher i10: example water inlet valve (part 5304525044), representative part photo for this code

Dishwasher6 codes

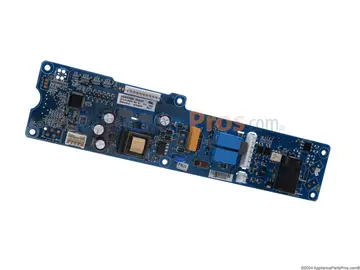

Electrolux dryer E40: example main control board (part 5304512731), representative part photo for this code

Dryer5 codes

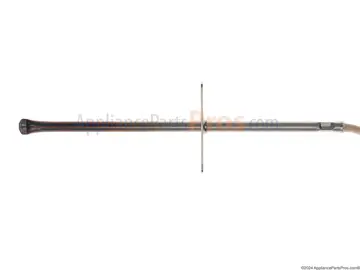

Electrolux range F10: example oven temperature sensor (part 316217002), representative part photo for this code

Range8 codes

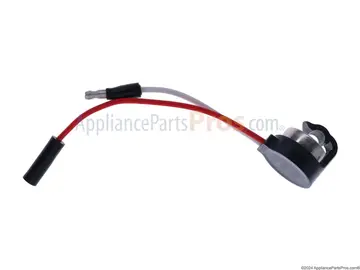

Electrolux refrigerator E1: example defrost thermostat / sensor (part 297216600), representative part photo for this code

Refrigerator5 codes

Electrolux washer E10: example water inlet valve (part 134190200), representative part photo for this code

Washer10 codes

Electrolux dishwasher codes

i10Water fill problem i20Drain problem i30Leak or overflow E15Water in base pan E24Drain fault E22Filter clogged

Electrolux dryer codes

E40Door open E51Motor circuit fault E64Temperature sensor open E65Temperature sensor shorted E24Heating fault

Electrolux range codes

F10Runaway oven temperature F11Shorted key F13Oven sensor open F14Oven sensor shorted F15Control internal fault F30Door lock motor fault F31Door lock switch fault F90Communication fault

Electrolux refrigerator codes

E1Fresh food sensor fault E2Freezer sensor fault E3Defrost circuit fault E5Evaporator fan fault E6Ice maker fault

Electrolux washer codes

E10Water inlet problem E13Water leak detected E20Drain problem E21Drain pump fault E40Door open E41Door lock fault E43Door lock circuit fault E45Motor control fault E50Motor stall / no speed feedback E66Heating circuit fault
