Samsung error codes

Samsung displays numeric-plus-letter codes such as 4C, 5E or 21E, and many models run a Smart Care self-check through the app. Washers and dryers often use letter pairs, refrigerators use number plus E. The codes apply to model numbers such as DW80R5061US, DW80K7050US and DV45T6000EW; check the label on your unit to confirm yours.

79 codes across 4 appliance types.

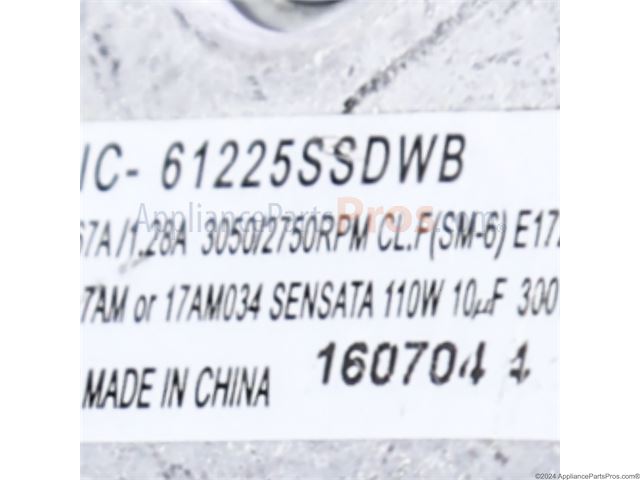

Samsung Dishwasher Sump Assembly (part DD82-01246A), shown as the reference photo for code 1E

Pick your appliance

Samsung Dishwasher Sump Assembly (part DD82-01246A), shown as the reference photo for code 1E

Dishwasher17 codes

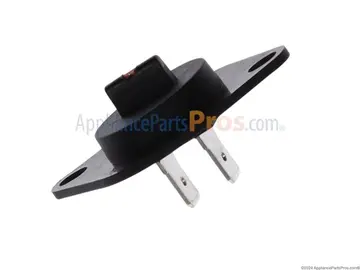

Samsung Dryer Thermistor Temperature Sensor (part DC32-00007A), shown as the reference photo for code tS

Dryer16 codes

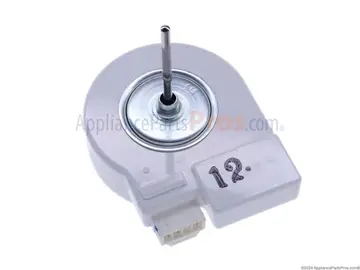

Samsung Refrigerator Evaporator Fan Motor (part DA31-00146E), shown as the reference photo for code 21E

Refrigerator20 codes

Samsung Washer Water Inlet Valve (part DC62-30314K), shown as the reference photo for code 4C

Washer26 codes

Samsung dishwasher codes

1EClogged filter error HCHigh temperature heater error 3CPump operation error 3EHigh temperature water supply 4CWater supply error 5CDrain error 7EWaterWall reflector error 9ELow water level error APAccess Point mode bEButton error CECommunication error HEHeater error LCLeakage error OCOver-level water error PCZone wash error PEHalf load function error tETemperature sensor error

Samsung dryer codes

tSTemperature sensor error HCHeating error ClgVent blocked (Vent Blockage test result)C80Vent about 80 percent blocked C90Vent over 90 percent blocked 9C1Voltage error bEJammed button error dCDoor error ACCommunication error FCFrequency error CtTemperature out of test range C1Laundry detected in drum dnFirmware download in progress 3CMotor error oDDry time error HC2Gas ignition error
